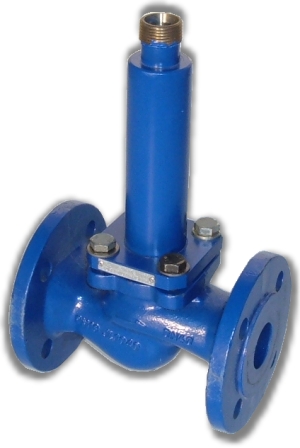

TH-16 Controlling valve

Installation

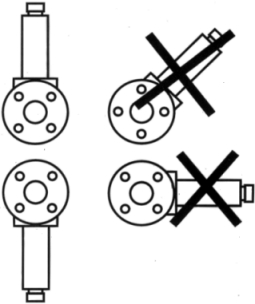

The controlling valve can be connected to steam and waternetwork by flange joint according to DIN2534 standard. Manufacturer exposed valve-shells t o40bar test pressure. Valvestalk in NA15-32 domain are guided by stuffing box with string. After occasional repair, this stuffing box can be tightened only in that degree that after pressing the valvestalk the spring coud open it again. Over NA40 measures the stuffing box is missing and a metal pipe makes movement towards axle possible. Valves are scaed along the axle. Temerature sensor prevents medium outflow along the axle . At installation axle must be in vertical postition.

Design

Measures according to DIN 3158.

Considering the structure valve plates between NA15 and 32 are without pressure-eqalizer. Onwards NA40 valve plates are with membrane piper pressure equalizer.

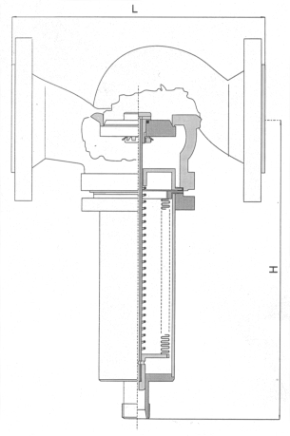

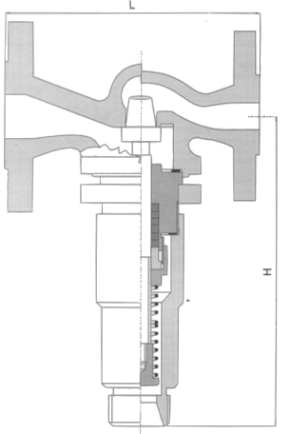

Sectional drawing NÁ 15-32	Sectional drawing NÁ 40-100

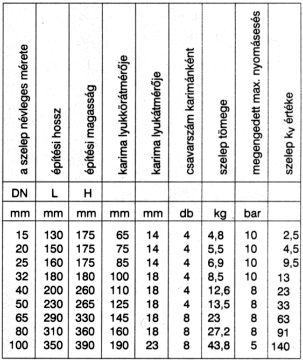

LTR: nominal measure of valve, construction length, construction height, flange pitch circle diameter, pitch diameter, screw number/flange, valve height, max. allowed pressure drop, Valve Kv value Warranty Our product is fixed free of charge for 12 months from the date of purchase. In case of failure, we are liable for any damage done to the phone number or address of manufacturer and forward equipment to our premises.
